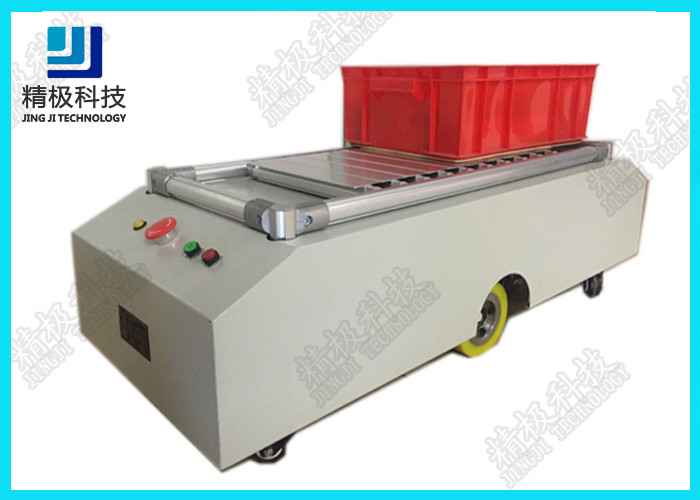

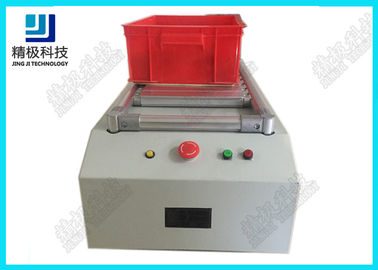

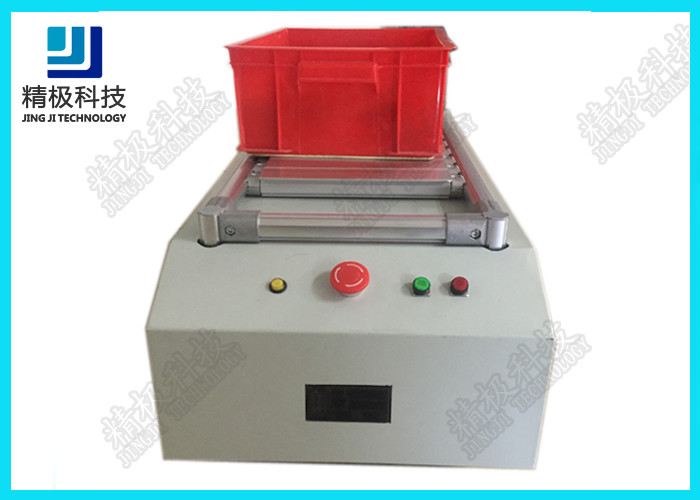

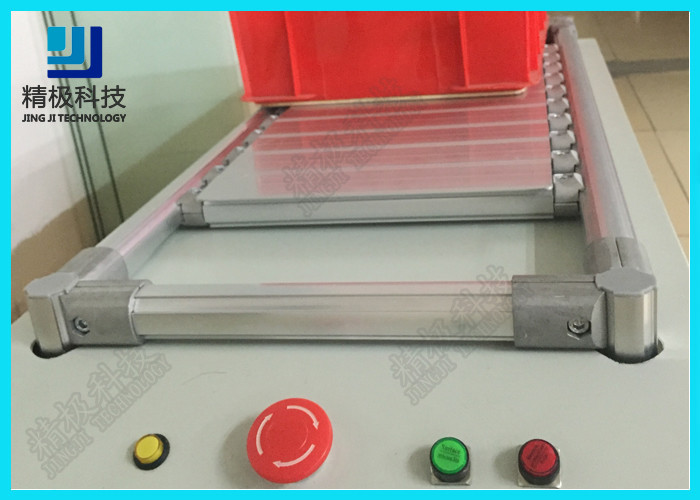

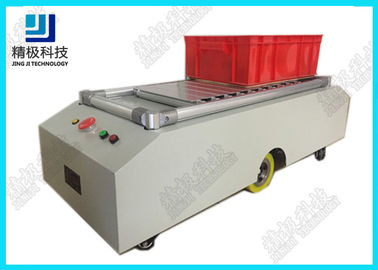

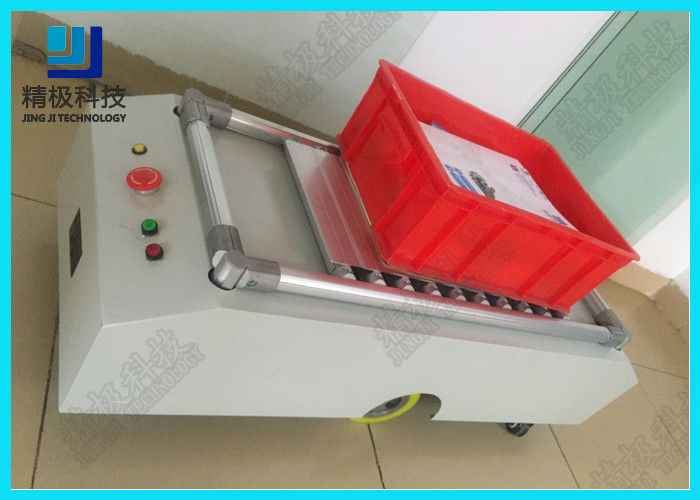

Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18

Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18

    • Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18
    • Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18
    • Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18
    • Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18
  • Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18

    उत्पाद विवरण:

    Place of Origin: Shenzhen ,China
    ब्रांड नाम: Top-King
    प्रमाणन: ISO9001:2008;RoHS
    Model Number: JJ-2017.5.18

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: None
    मूल्य: Negotiation
    Packaging Details: Normal package ,can arrange per customer's special requirment
    Delivery Time: The actual lead time according to the quantity
    Payment Terms: TT
    Supply Ability: 1000 sets per day
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Name: Standard Single –Drive Two-Way Knapsack AGV Size: L110*W400*H300(mm)
    Encode: JC017050001 Gradeability: 3-5°
    Working mode: 24 hours Design life: >10 years
    Alarm: Sound-light alarm Drive Mode: Differential drive
    Drive Power: DC24V Ontology model: Ordinary type

    Magnetic Stripe Navigation Standard Single –Drive Two-Way Knapsack AGV JJ-2017.5.18



    Description:


    Operation Overview of the multi-station Knapsack type This Knapsack type of AGV can deliver material with Pallet Wheeled shelf,box,rolloing cylinder,and turnover box on its Top back ,or with a towed carrier,Through reading the position Mark,It can choose the stations automatically to stop ,with 300mm min,turning radius,and +-10mm braking accuracy.it is equipped With a sector scanning obstacle sensor and mechanical anti-collision Device.Multiple AGV can be combined together to be a flexible Production System,instead of the traditional assembly line

    Walking Route Diagram of Knapsack AGV

    Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18

    Technical Parameters Specification


    Product Name Bi-directional AGV Size L110*W400*H300(mm)
    Model JJ-2017.5.18 Encode JC017050001
    Navigation Accuracy ±20mm Navigation Direction magnetic stripe navigation
    Working mode 24 hours Running Direction back and forth twin-row
    Gradeability 3-5° WLAN WIFI network,RF network
    Stop precision ±10mm Drive Mode Differential drive
    Charging mode Manual charging Drive Power DC24V
    Safe detectable area ≤3m ,adjustable Carrying capacity 50KG
    Alarm Sound-light alarm Ontology model Ordinary type
    Accumulator Lead batteries, lithium battery Running Speed 0-45m/min(customized)
    Design life >10 years Safety protection Anterior barrier detection sensor protection



    Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18




    Application of Knapsack AGV



    Magnetic Stripe Navigation Standard Single Drive Two - Way Knapsack AGV JJ-2017.5.18



    Knapsack AGV Application



    Knapsack AGV enable you to put trays racks ,boxes ,drums,turnover boxes and other goods on their bodies or pull vehicles a their

    Tails ,Such AGV can realize intelligent stops by recognizing landmarks with the 300 mm minimum turning radius and +_10mm stop

    Accuracy ,A double safety design is provided with a fan-shaps scanning sensor and a mechanical anti-collision device.When multiple

    Sets of AGV are used,they form an assembly line to substitute for a traditional line.This realizes a flexible production system.





    Our Company


    Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.

    We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.
