Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line

चीन Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line आपूर्तिकर्ता
Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line आपूर्तिकर्ता Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line आपूर्तिकर्ता Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line आपूर्तिकर्ता

बड़ी छवि :  Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line

उत्पाद विवरण:

Place of Origin: Shenzhen ,China
ब्रांड नाम: Top-King
प्रमाणन: ISO9001:2008;RoHS
Model Number: HJ-4000

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1000 meters
मूल्य: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: TT
Supply Ability: 10000 meters per day
Contact Now
विस्तृत उत्पाद विवरण
Material: Q235 steel with PE/ABS coated Alloy or not: Non-alloy
Color: Red Wight: 800g/m
Length: 40000mm/Bar Thickness: 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
Shape of head: Round Usage: Connecting pipe rack system

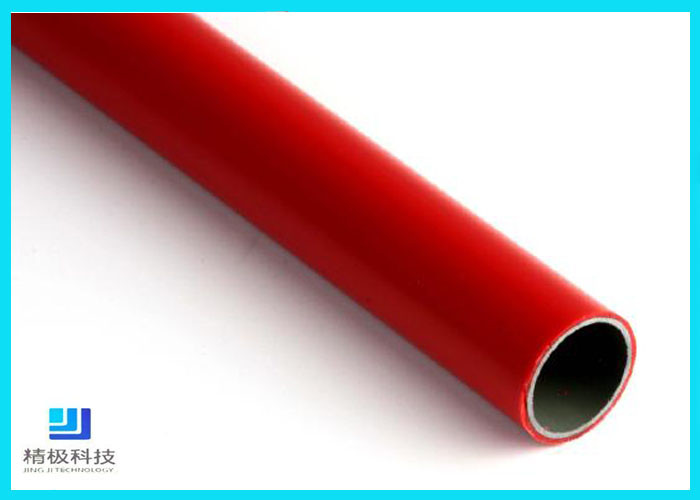

Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line

Detail


Model HJ-4000
Material Q235 steel with PE/ABS coated
External Diameter 27.5mm-28mm
Internal Diameter 19.5mm-24mm
Thickness 0.8mm/1.0mm/1.2mm/1.5mm

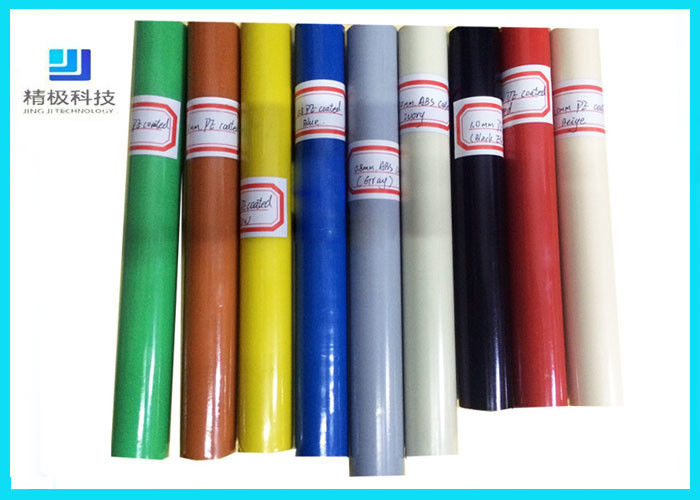

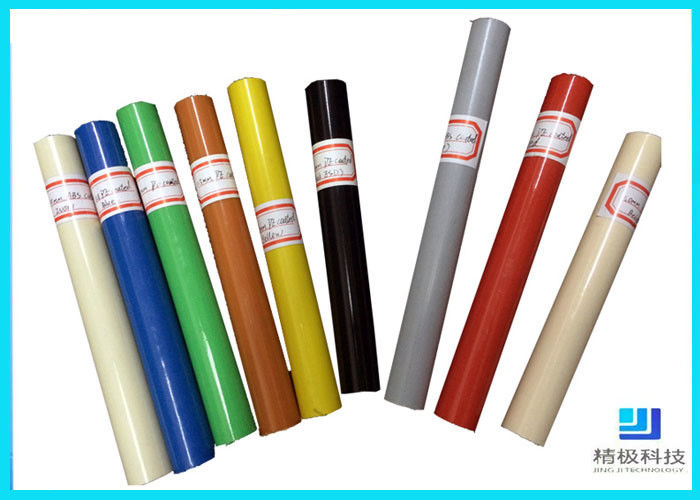

Colors: Red (Color can be customized)
Weight 800g/m
Specification Length=4000mm



Description

Plastic coated pipe is made of a steel alloy and polymer plastic coated pipe (lean tube), which the outer and inner are composite plastic coated, combining adhesive with the middle layer by steel alloys into one flexible composite pipe.


Feature Of Pipe


1. ABS/PE coated pipe are flexible and creative
It is simple to structure different pipe rack products ,you can designed and assembled into whaterver you want.

2. Simple and easy to use.

Plastic coated pipe and pipe joints are fixed by bolts and nuts to structure pipe racking products.
They Can be dismantled and reused the pipe and pipe joints to assemble others products .

Load Capacity Test Of Pipe

Length Thickness 0.8mm Thickness 1.2mm Thickness 1.5mm
450mm/17.72'' Load Capacity 165 kgf Load Capacity 215 kgf Load Capacity 260 kgf
900mm/35.43'' Load Capacity 85 kgf Load Capacity 110 kgf Load Capacity 135 kgf
1000mm/39.37'' Load Capacity 78 kgf Load Capacity 100 kgf Load Capacity 120 kgf
1100mm/43.31'' Load Capacity 75 kgf Load Capacity 97 kgf Load Capacity 112 kgf
1300mm/51.18'' Load Capacity 65 kgf Load Capacity 84 kgf Load Capacity 104 kgf
1500mm/59.06'' Load Capacity 55 kgf Load Capacity 70 kgf Load Capacity 85 kgf
1800mm/70.87'' Load Capacity 40 kgf Load Capacity 52 kgf Load Capacity 62 kgf
2000mm/78.74'' Load Capacity 34 kgf Load Capacity 45 kgf Load Capacity 54 kgf



Competitive Advantage:

1. We are derict maufacture,can control the quality and price,to sale the high quality and best price
2. We got the patent of aluminum alloy pipe  in China, the only manufacturer to products this products.
3. We have more than ten year experience in pipe rack system,
4. Free sample for our customer,but need you pay for the freight.
5. Pipe rack products and design solution supplied fast and freely
6. Best design oriented for your special requirements
7. Lifelong technical support
8. Professional team support
9. Standard Design
10 .Concept proposal
11. 3D Drawing
12. Part delivery



Why to chooes us ?

Shenzhen Jingji Technology Co., Ltd. Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.


We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.

Quality control by ourselves:

Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line
Load capacity
Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line

Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production LineQ235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production LineQ235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line
Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line
Q235 Steel Pipe PE/ABS Coated Lean Tube OD 28mm For Production Line
