Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System

Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System

  • Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System
  • Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System
  • Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System
Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System
उत्पाद विवरण:
Place of Origin: Shenzhen ,China
ब्रांड नाम: Top-King
प्रमाणन: ISO9001:2008;RoHS

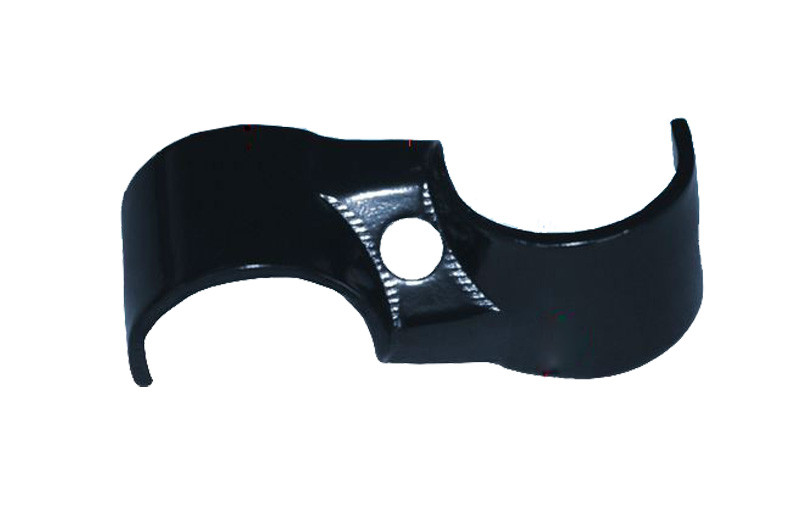

Model Number: H-8
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 500 set
मूल्य: Negotiation
Packaging Details: 250 pieces packing together in a 300*250*152 mm carton
Delivery Time: 5-7 working days with PO and deposit
Payment Terms: TT
Supply Ability: 10000 pieces per day
संपर्क करें
विस्तृत उत्पाद विवरण
Material: 2.5mm Thickness SPCC Color: Black / Silvery
Name: pipe joint system Usge: Adjuster pipe joint connecting
Shape: Cross connecting pipe joint Head code: round
HS code: 7307990000 Weight: 43 g /pcs
Package: 250 piece per carton Package carton size: 360mm*300mm*250mm
Diameter: 28mm Combination: Two pieces H-8 fixed with one set M6*25 bolt&nut to be HJ-6
हाई लाइट:

flexible pipe joint

,

metal tube joints

Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System





pipes and joints system is both versatile and cost effective as all pipes and joints are reusable,

enabling constructions to be easily reconfigured or products recycled to create equipment to

suit different applications.



* Production base:Shenzhen Jingji Co., Ltd



* Model number: H-8



* Brand name: JINGYU



Term of Trade:  EXW / FOB / CIF



1. Material:

 2.5mm Thickness SPCC steel

2. Surface treatment :

Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome

plated(Silvery one)

3.  production procedure:

SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis

Or Plating

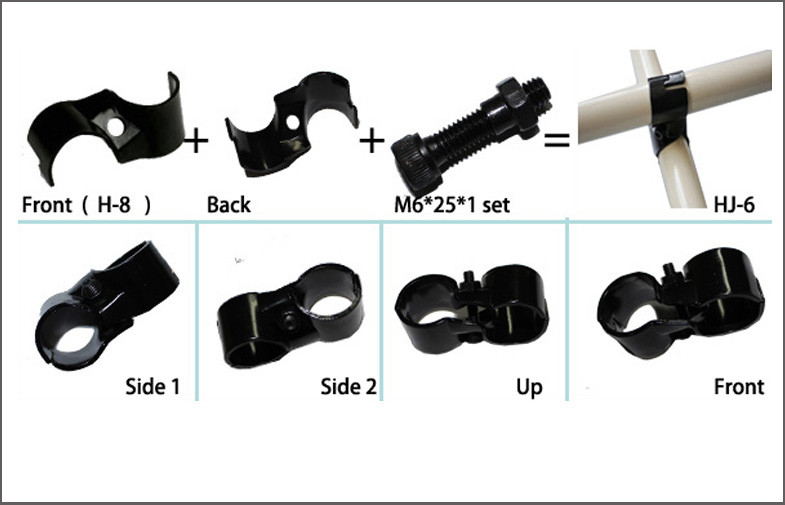

4. Main Combination:

Two  pieces of H-8 pipe joints andone set  of M6*25 bolt & nut can be assemble one set of  metal pipe joint

HJ-6(H-8*2+M6*25*1)

5.Weight

43g/ pcs

6. Item No.

H-8





Product Description :



1. Manufacturing standard:

Using international materials production under strict Jingji quality control and inspection.



2. Production process:

Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC

 material. We emphasize on the functions of each product. Cutting corners in manufacturing

process is not allowed.



3. Design requirements:

The standard is in accordance with the most favorable specification in the industry. Emphasizes

on the safety of people, articles, and equipment prolong the service life.



4. Testing:

In addition to the regular standard gauge testing, a special gauge testing is added for every

process to ensure the functional indices reach the standard.





electrophoresis joint for pipe rack assembly|hardware accessories|metal joint


Flexible lean pipes and  joints are safety and durability with the higher reliability.

Shenzhen Jingji Technology Plastic coated pipe is serving the markets by the advantages

of the coated pipe combination.

 We will continuously research and develop the accessories which have extended functions.

Currently the joints series have hundreds kinds of products.

And the new pipe rack system aluminum alloy pipe and pipe joints are sale on market.





Application of H-5 and H-6 metal pipe and joints.



Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System 0



Pipe joints

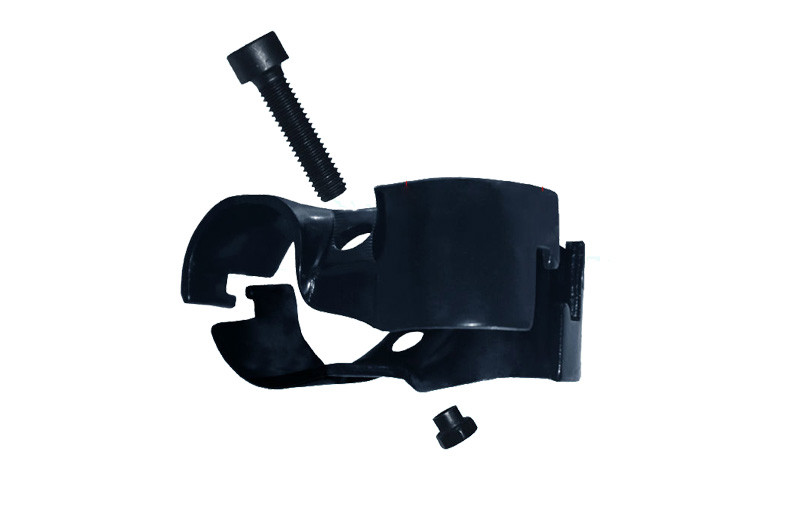

The Metal Joint will be fastened by bolt and nut so that it is easy for you to assemble

 or disassemble



Joints offer an easy assembly solution for different structure requirements. Our joints are

 available in a wide range of selection to build any complex structure. The metal joints can

easily be fastened by nut and bolt, making the structures easy to assemble and disassemble.
