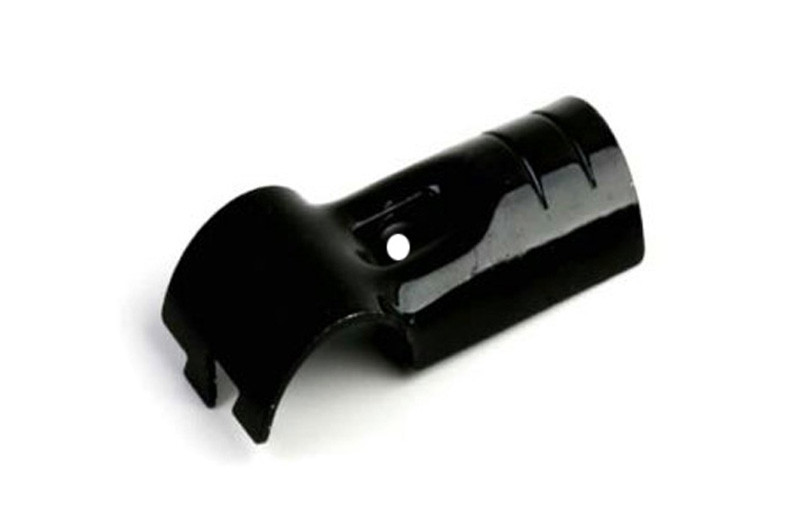

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

    • ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
    • ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
    • ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
  • ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

    उत्पाद विवरण:

    Place of Origin: Shenzhen,China
    ब्रांड नाम: TOP-KING
    प्रमाणन: ISO9001:2008;SGS;RoHS
    Model Number: H-1

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1000 pieces
    मूल्य: Negotiation
    Packaging Details: 300 pieces packing together in a 300*250*152 mm carton
    Delivery Time: 5-7 working days with PO and deposit
    Payment Terms: Western Union, T/T
    Supply Ability: 10000 pieces per day
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Material: 2.5mm Thickness SPCC Color: Black / Silvery
    Name: Metal pipe joint Usge: Connecting ABS coated pipe
    Shape: Tee type pipe joint Head code: round
    HS code: 7307990000 Weight: 64g/pcs
    Package: 300 piece per carton Package carton size: 300mm*250mm*152mm

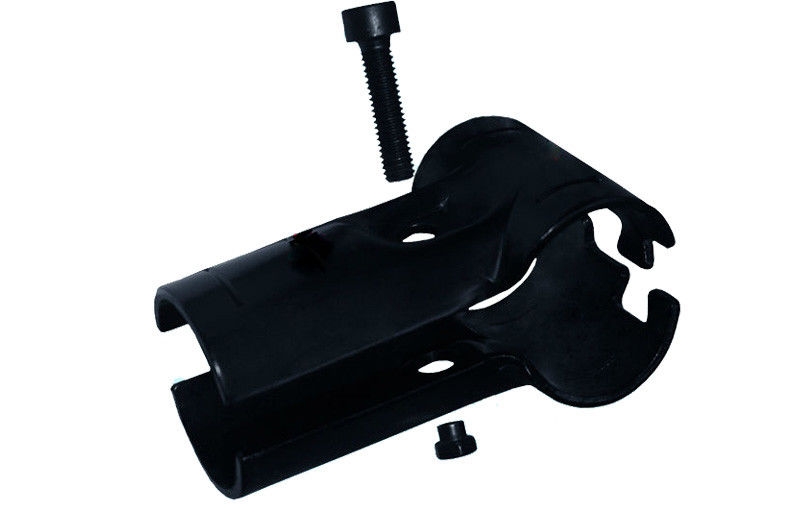

    Diameter: 28mm Combination: two pieces H-1 pipe joints fixed with one set M6*25 bolt&nut

    ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System



    1. Material:

     2.5mm Thickness SPCC steel

    2. Surface treatment :

    Surface electrophoresis treatment(Black one),

    Zinc/ Nickel /Chrome plated(Silvery one)

    3.  production procedure:

    SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis Or Plating

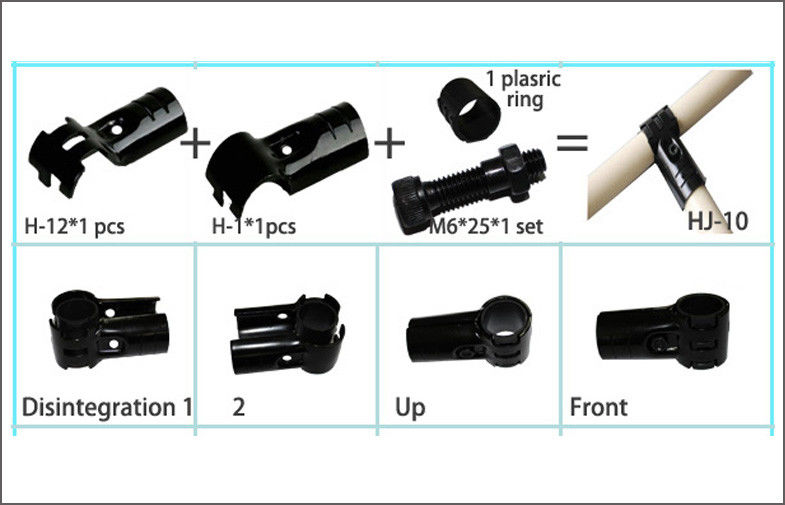

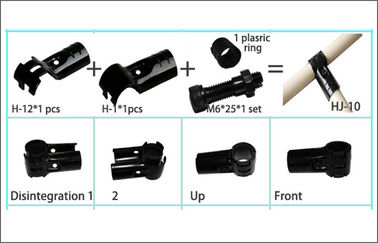

    4. Main Combination:

    Two pieces of H-1 pipe joints and one set of M6*25 bolt &

    nut can be assemble one set of  metal pipe joint HJ-1(H-2*2+M6*25*1)

    5.Weight

    61g/ pcs

    6. Item No.

    H-1





    Product Description :



    1. Manufacturing standard:

    Using international materials production under strict Jingji quality control and inspection.

    2. Production process:

    Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC material.

    We emphasize on the functions of each product. Cutting corners in manufacturing process is not allowed.

    3. Design requirements:

    The standard is in accordance with the most favorable specification in the industry. Emphasizes on the

    safety of people, articles, and equipment prolong the service life.

    4. Testing:

    In addition to the regular standard gauge testing, a special gauge testing is added for every process to

    ensure the functional indices reach the standard.





    joint manufacturer|Metal Joint workbench producers|storage rack system :


     H-1 Pipe joint s are safety and durability with the higher reliability.

    Shenzhen Jingji Technology Plastic coated pipe is serving the markets by the advantages of the

     coated pipe combination. We will continuously research and develop the accessories which have

    extended functions. Currently the joints series have hundreds kinds of products.



    Metal pipe joint RoHS Test Report

    ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
