|Place of Origin:||Shenzhen,China|
|प्रमाणन:||ISO9001,SGS,Rohs Test Report|
|Minimum Order Quantity:||200 sets|
|Packaging Details:||packing in carton box in 360mm*300mm*160mm|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||5000 sets per day|
|Material:||2.3mm -2.5mm thickness SPPC Steel||Name:||HJ-3B metal pipe joint|
|Inner Diameter:||28mm||Connection type:||Female|
|Weight:||280g/set||packing:||packing in carton without any printing|
|HS code:||7307990000||Usga:||Connecting in racking system|

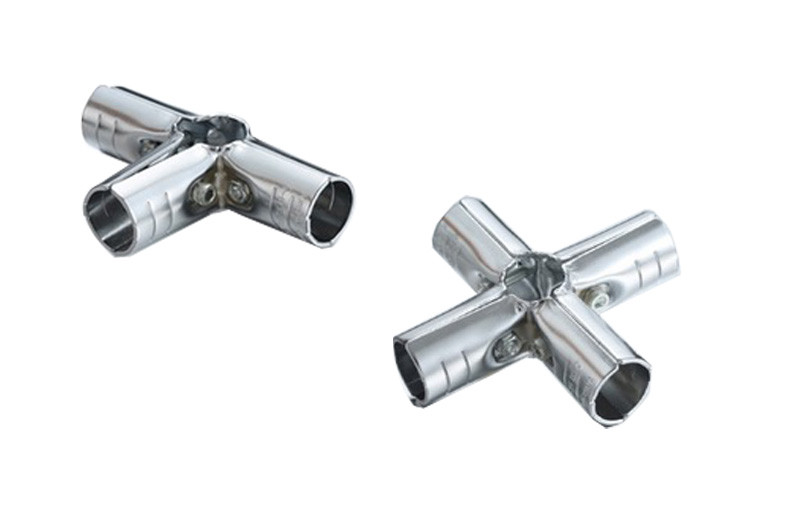

Chrome Plated 3 Way Metal Pipe Connectors For Assembly Flexible Module Racking System
Quit detail :
2. Surface treatment :
Zinc/ Nickel /Chrome plated(Silvery one)
3. production procedure:
SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis
4. Main Combination:
One pieces of H-4B ,2 piece of H-3B and 3 sets of M6*25 bolts & nuts(H-2B*2+H-4B*1+M6*25*3)
6. Item No.
1.Three ways chrome plated metal pipe joints HJ-3B.Chrome plated surface treatment ,
smooth and glossy surface.
2.This Metal pipe joint is fixed by M6*25,it is simple to operate to connecting in pipe racking
system.If you need to disassembly racking system,just need to loosen the M6*25 bolt and nut.
3.Environment friendly.The pipe joints can be used in others pipe rack products.Save the cost.
1. Sample and easy operation
Because metal pipe joints connecting the lean pipes in pipe rack products what fixed by
M6*25 bolt and nut, only need a M6 spanner to tighten and loosen when assembly and
disassembly pipe racking system.
2. High smooth and glossy surface.
Before surface treatment, metal pipe connectors are sent to surface grinding after stamping.
Beautiful appearance and practical.
3, Environmental protection, can be reused
Flexible pipe and pipe joints are re-used pipe rack parts. Can be disassembled the pipe rack products and
used the lean pipes
and pipe connectors to assemble other products, Jut need to loosen the bolt and nut on the
metal pipe joints.
4. Pipe rack products’ layer can be adjusted and re-modified.
If you want to change the shape or the height, you loosen the bolt and nut, and adjust to the
suitable place.That is OK.
Application of metal pipe connector:
Using Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack products can be
made into. Pipe and joint system are a flexible and DIY system consists of pipe, joint and
specialized accessories, assembled in a variety of configurations to serve various function.
It is commonly used as storage and handing equipment including rack, shelves, workstation
