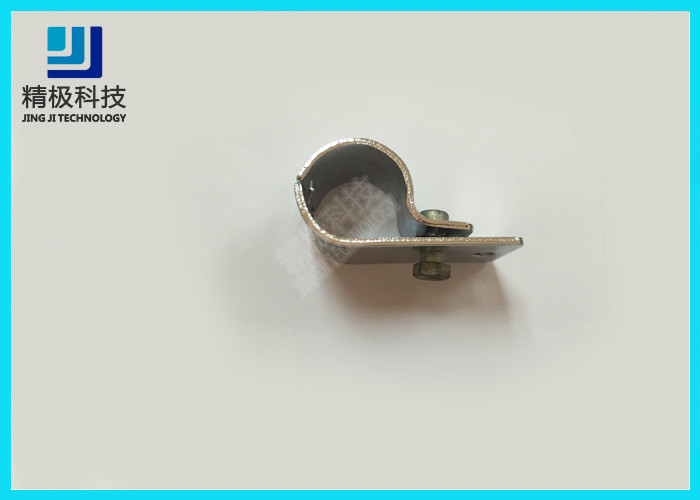

CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish

CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish

    • CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish
    • CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish
    • CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish
    • CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish
  • CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish

    उत्पाद विवरण:

    Place of Origin: Shenzhen ,China
    ब्रांड नाम: Top-King
    प्रमाणन: ISO9001:2008;RoHS
    Model Number: HJ-13D

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 500 set
    मूल्य: Negotiation
    Packaging Details: 250 pieces packing together in a 300*250*152 mm carton
    Delivery Time: 15 working days with PO and deposit
    Payment Terms: TT, Western Union
    Supply Ability: 10000 pieces per day
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Name: Metal Pipe Bracket Material: CRS Cold Rolled Steel
    Recyclable: YES Reusable parts: YES
    ESD: YES Finish: Glossy
    Usge: Strong connection Steel treatment: Chorming electroplating

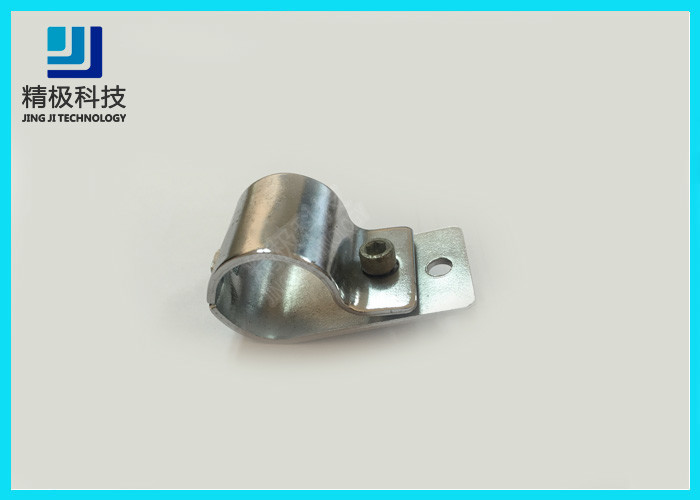

    Metal Anti-static Surface Clamp Joint Pipe Fitting For Lamp Support HJ-13D



     Production Name:

     Metal anti-static surface clamp joint
     Item Model:  HJ-13D
     Combination:  1 (H10) + 1 (H11) + 1 (M6*12)

     Material:

     CRS Cold Rolled Steel

     Color:  Silvery

     Surface treatment :

     Chroming

     Thickness:

     23 mm



    CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish


    Description:

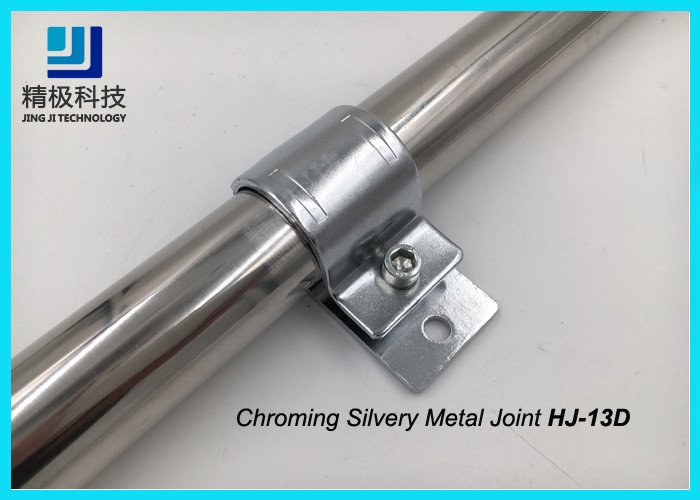

    The HJ-13D is a metal anti-static connector that allows you to connect a pipe with a surface. This connector is a prime choice if you need to secure the surface solidly onto your Flexpipe structure. If you want to create multiple anchor and support points, this connector is the best solution in the Flexpipe system. Unlike other clamping solutions in the system, this one will create the most uniform look of all.

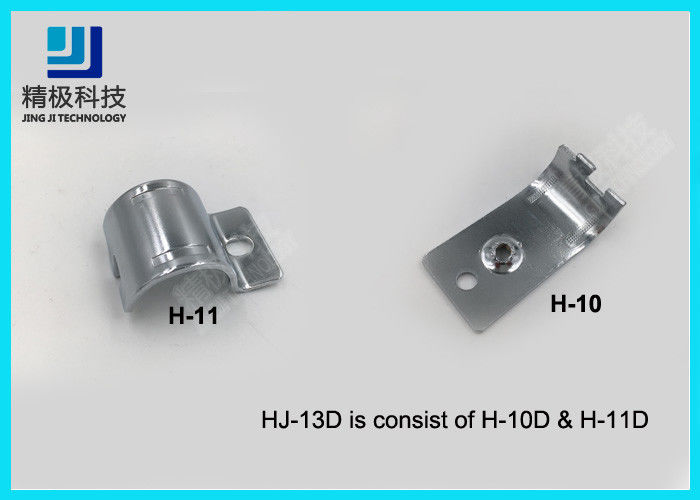

    This joint eliminates the need to use EMT-1 and the AO-SHIM that goes with it. This is possible because the Connector itself acts as a shim. This solution creates a stronger bond between the pipe and the surface. To assemble an HJ-13D, you need to group an H-10D and an H-11D with one M6-12 bolt and one M6 nut.



    The HJ-11D is the only joint in the Flexpipe system that doesn’t use a standard connector bolt. Make sure you have selected the right bolt when purchasing the parts necessary to assemble this metal joint. The right Bolt for this joint is the M6-12, which requires an M6.




    Combination:
    one HJ-13D is combine with 1 pcs H-10D and 1 pcs of H-11 and 1 set of M6*12Silvery
     It is used for the strong connection between the composite pipe and the plate.

    Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .



    Metal joints are available as H (28mm) components or HJ (28mm) joint sets.

    H-components are joined together with common sized nuts and bolts to form HJ joint sets.

    All Metal joint sets are designed to hold the nut so only a simple hex wrench is required for assembly or disassembly.

    Chorming Metal joints are available for use with ESD rated Creform pipe for structures in anti-static applications.



     CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy FinishCRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish


    HOW TO INSTAL

    1- Make sure you have the following parts:
    1H-10D
    1 H-11D
    1 M6-12
    1 M6
    1 28mm pipes of your choice
    1 spanner 5mm tip
    2-Take a connector H-10D and a connector H-11D and group them around the PE1 pipe.
    3-Take a M6-12 bolt and a M6 nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
    4- Tighten completely the M6-12bolt and M6 nut together until the HJ-13D attached firmly to the PE1 pipe. A force of 9.8 Nm is recommended for this step.
    5- Fix the HJ-13D on the surface of your choice with one appropriate screw for the select surface.


    Advantage:
    1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
    2. The outer surface is composed of special plastic layer and inner surface coating.
    3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
    4. It is an ideal substitute for stainless steel products.
    5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing

    Features:
    1. Flexible and creative: simple structure, and your creativity can be used.
    3. Flexibility: modular structure, easy to restructure, make you always have fresh feeling.
    4. Safety: flexible pipe plastic surface to reduce the risk of injury to workers in the workplace
    5. Environmental protection: pollution-free production, the components are completely recyclable, and eliminate waste, which is completely in line with the international environmental protection concept
    6. Body mechanics: a single M6 hexagon wrench can complete the installation process.The concept of multi-purpose is used to give full play to economic benefits.

    Application:
    Flow Rack
    Holds extensive supply of containers for feeding production area with ample return lanes for holding emptied containers.
    Angled Flow Rack
    Lanes slope lengthwise allowing containers to flow from load to picking end while second lane tilts containers for easy picking and viewing contents.
    Supermarket Flow Racks
    Wth serveral levels are connected with brackets to maintain spacing and alignment while high-level density provides efficient order picking.
    Pipe & Joint System
    Provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.

    CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish



    ESD Cart and Assembly Station

    It is designed for handling electronic processors, chips, memory boards and CPUs during assembly and transport.



    Mobile Workstation and Ergonomic Flow Rack

    This stores and presents parts and components to technicians at the workstation



    CRS Cold Rolled Steel Clamp Metal Pipe Bracket with Glossy Finish



    Cradle Carts

    It is with an open deck design is easy to load and unload long items and side rails prevent roll off while caster design provides good maneuverability.



    Tray Cart/Rack

    It is ideal for handling parts where high temperature processing is involved, or for curing and drying operations after parts coating or finishing.



    Our Company
    Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
    We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.


    Looking for a particular part? Tell us which one and for what purpose.



    As a lean manufacturer ourselves, we try to limit our parts quantity to the essential. We have realized that a supply of 150 different parts is enough to assemble almost any structure. We keep in stock only what you need! We also suggest a list of approved vendors to help you with special requests.

    If you don’t find what you are looking for, contact us to place a special order or to find a workaround.



    Mission

    Our mission is to enable individuals and companies to increase productivity and add value to their processes. We make this possible by offering the most affordable modular system on the market for building light custom structures.
