Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment

Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment

  • Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment
  • Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment
  • Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment
  • Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment
Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment
उत्पाद विवरण:
Place of Origin: Shenzhen ,China
ब्रांड नाम: Top-King
प्रमाणन: ISO9001:2008;RoHS
Model Number: HJ-10D
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 500 set
मूल्य: Negotiation
Packaging Details: 250 pieces packing together in a 300*250*152 mm carton
Delivery Time: 15 working days with PO and deposit
Payment Terms: TT, Western Union
Supply Ability: 10000 pieces per day
संपर्क करें
विस्तृत उत्पाद विवरण
Name: Metal anti-static tee hinge joint set Material: CRS Cold Rolled Steel
Color: Silvery Thickness: 23mm
cCompatible joint systems: Flexpipe, Creform Recyclable: Yes
common uses: pivot, perpendicular tubes hinge Application:: Workbench, Storage shelf, Revolving car, display rack,etc
हाई लाइट:

chrome pipe fittings

,

chrome shower pipe fittings

Revolute Joint Silvery Pipe Fitting Chorming Treatment Anti-static HJ-10D



 Production Name:

 Revolute Joint
 Item Model:  HJ-10D
 Combination:  HJ-10D contains 2 pcs H-12D and 2 set of M6*25 Silvery

 Material:

 CRS Cold Rolled Steel

 Color:  Silvery

 Surface treatment :

 Chroming

 Thickness:

 23 mm



Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 0


Description:

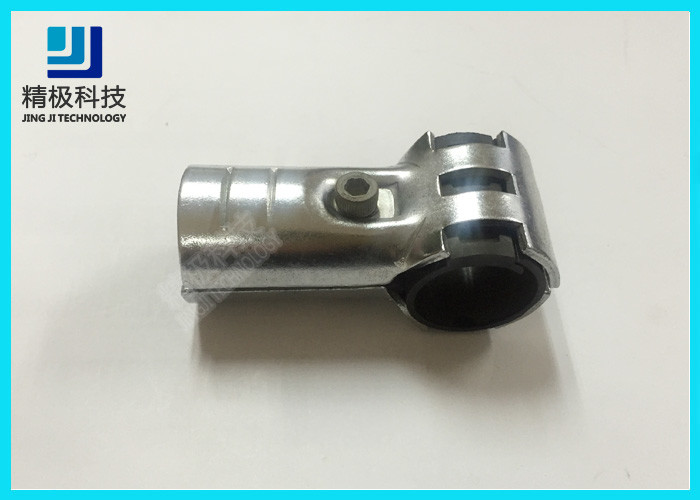

The HJ-10D is a hinge anti-static connector that allows a pipe to rotate 360 degrees around another perpendicular pipe. This feature enables the creation of a multitude of rotating modules on Flexpipe structures. We use this hinge joint at Flexpipe to build doors, movable separations, and folding shelves.

If you don't use a stopper on any rotating pipe, you can also slide the fitting onto this pipe and create different setups for separations. If you need to prevent sliding, be sure to take a look at the tips and tricks section of this product page.

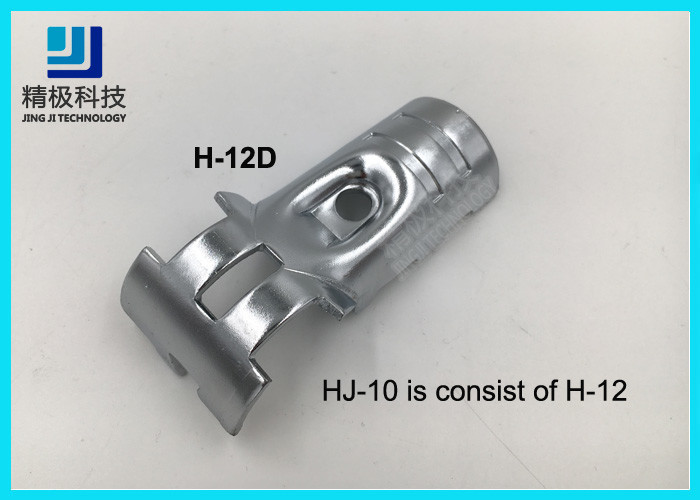

This hinge will give you the option of adding additional working surfaces when necessary or even making entire folding structures like folding tables. To make an HJ-10D, you need to assemble two H-12D around an Plastic HINGE with one M6-25 bolt and one M6 nut.



Designing Flexpipe structures with the HJ-10d can be tricky if you have not built a structure with a pipe and joint system before. We recommend that you visit our photo section to find ideas on how best to make use of this connector.



Combination:

one HJ-10D is combine with 2 pcs H-12D and 1 set of M6*25 Silvery bolt and nut
 It is Used fo two composite pipes to connect to a relatively rotational T structure

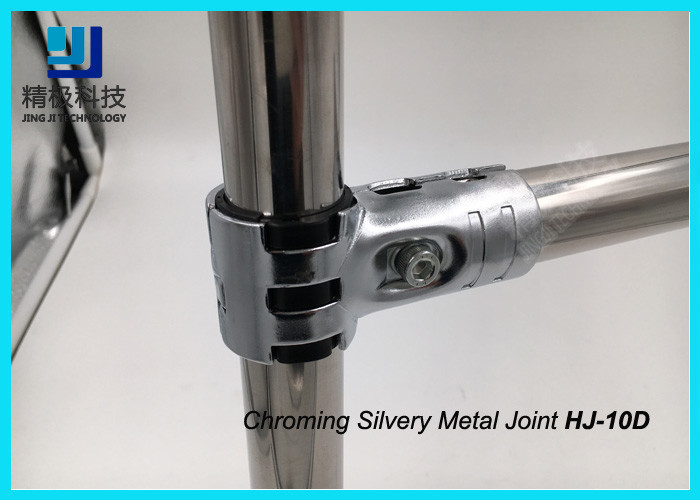

Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .

 Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 1Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 2


How To Install

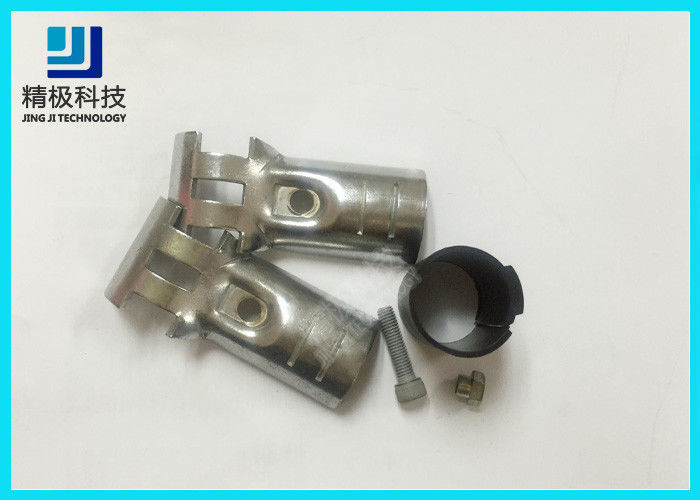

1- Make sure you have the following parts:
2 H-12D
1 PLASTIC-HINGE
1 M6-25
1 M6
2 28mm pipes of your choice
1 spanner with  5 mm tip
2- Take a plastic Hinge and press it on the pipe PE1 until the hinge is fix.
3-Take two connectors H-12D and group them around the Plastic HINGE.
4-Take a M6-25 bolt and a M6 nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
5-Tighten the M6-25 bolt and nut M6 together a few threads , but no more.
6- Insert the PE2 pipe within the HJ-10D between the first and second guides as shown in the plan .
7- Tighten completely the M6-25 bolt and M6 nut together until the HJ- 10D attached firmly to the plastic HINGE and the pipe PE2 . A force of 9.8 Nm is recommended for this step.


Advantage:
1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
2. The outer surface is composed of special plastic layer and inner surface coating.
3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
4. It is an ideal substitute for stainless steel products.
5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing



Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 3Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 4Metal Anti static Tee Hinge Joint Set Chrome Pipe Connectors Chorming Treatment 5



Value


  1. Customer satisfaction – We do our best to meet the expectations of our clients regarding service time and quality.
  2. Friendliness – We value pleasant, warm, and personal relationships.
  3. Integrity – We are honest, loyal, committed, and fair.
  4. Excellence – Efficiency at work translates into excellence: do the best with the least resources and seek to improve continually.
  5. Reliability – We make commitments and live up to them.



Our Company
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
